ICE CREAM AUTOMATIC CUP & CONE FILLING MACHINE

ICE CREAM AUTOMATIC CUP & CONE FILLING MACHINE Specification

Refrigerant
Yes

Product Type
Ice Cream Filling Machine

Shape
Round

Voltage
220 Volt (v)

Color
SS

Warranty
Yes

ICE CREAM AUTOMATIC CUP & CONE FILLING MACHINE Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C), Western Union

Supply Ability
2 Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Africa, Western Europe, North America, Australia, Eastern Europe, Central America, South America, Middle East, Asia

Main Domestic Market
All India

About ICE CREAM AUTOMATIC CUP & CONE FILLING MACHINE

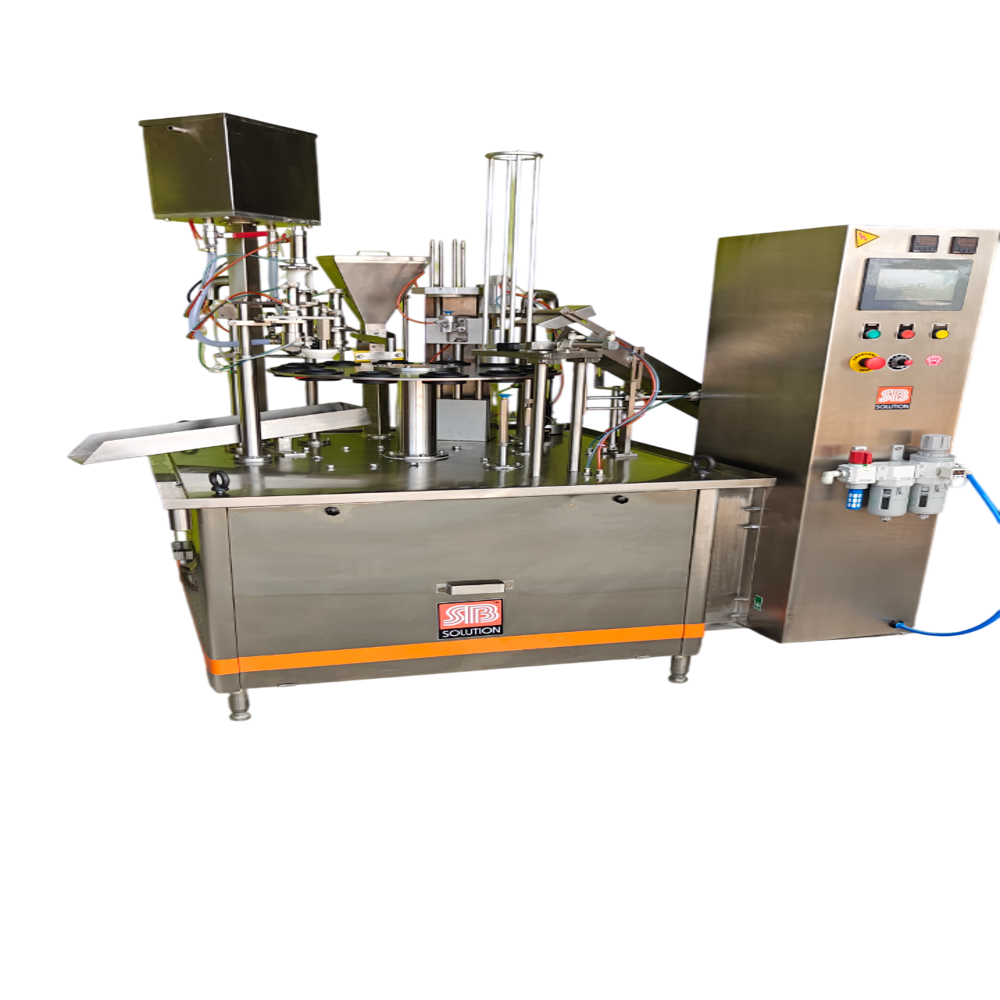

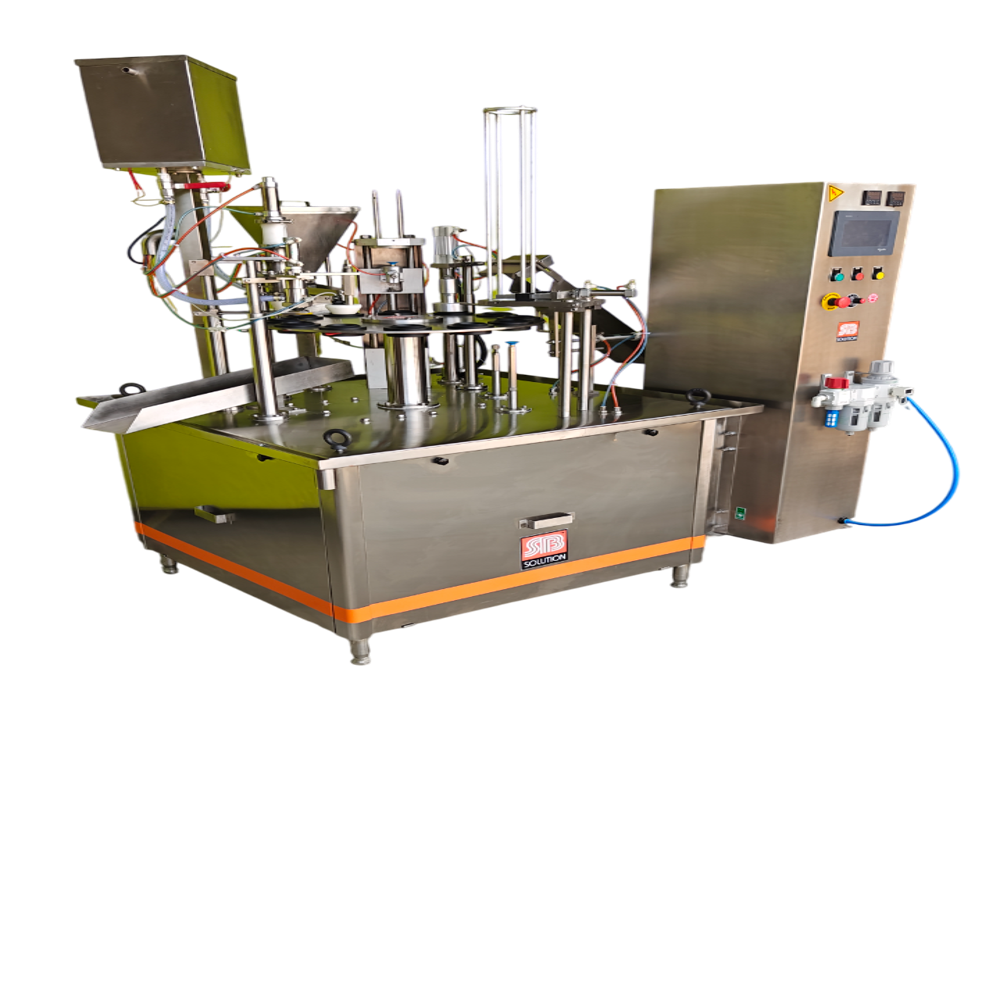

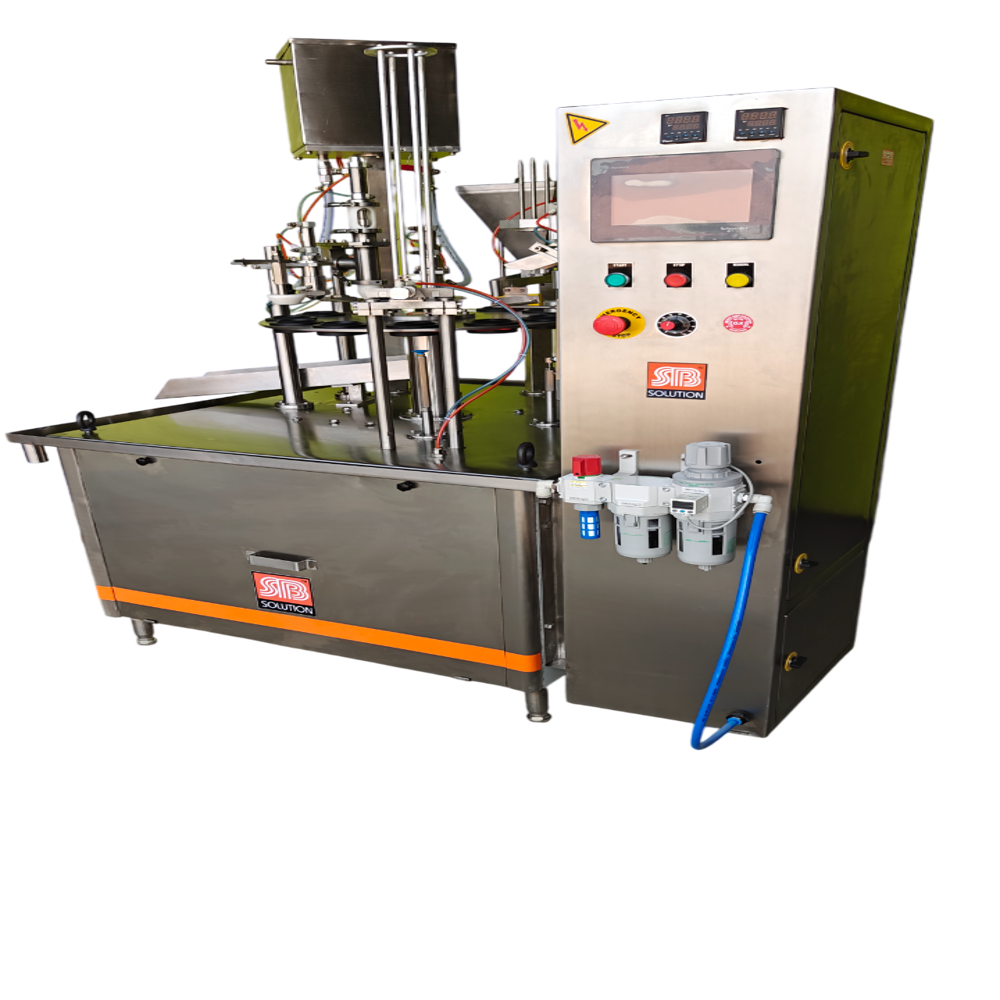

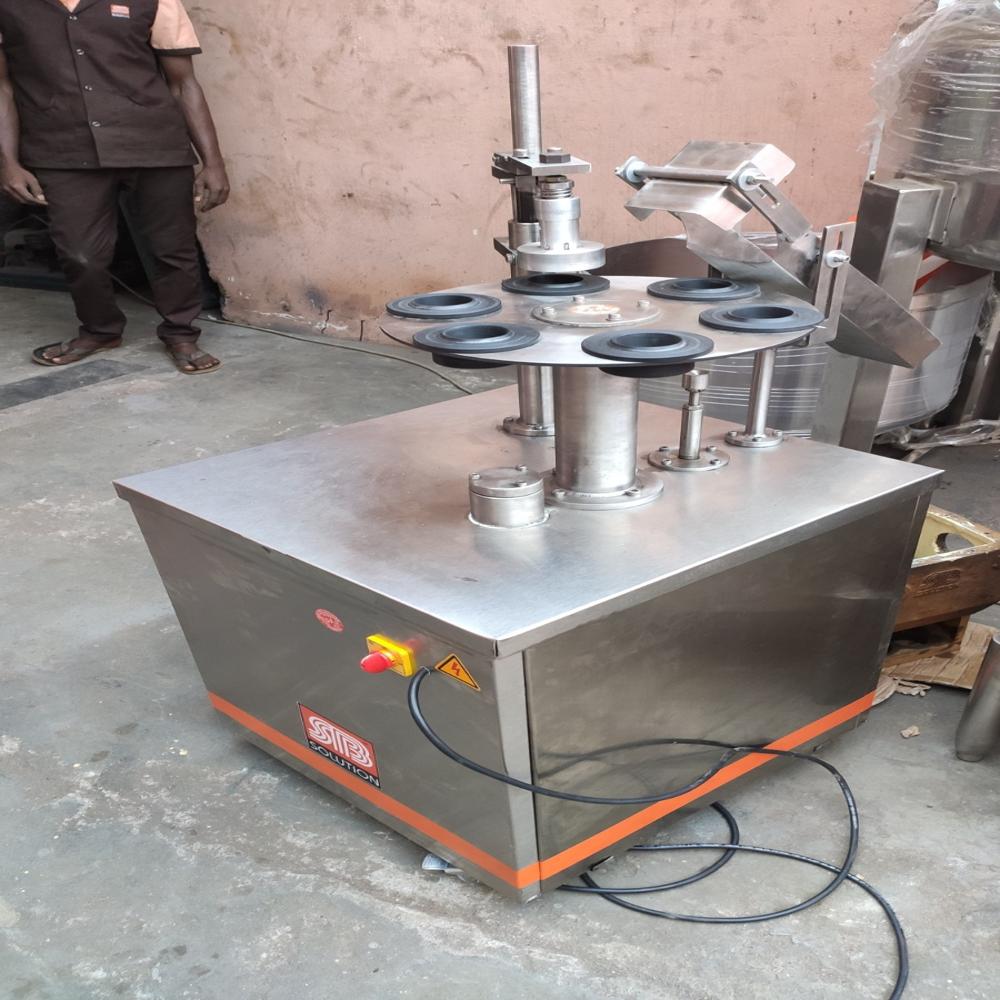

Automatic Ice Cream Cup & Cone Filling Machine (Model: SBS):

The SBS 3K Pcs/Hr is a compact, rotary-type automatic filling machine specially designed for accurate and hygienic filling of ice cream into cups and cones. With a robust build and user-friendly controls, it is ideal for commercial ice cream production facilities.

Key Features:

Production Capacity: Up to 3000 cups/cones per hour
Filling Range: Compatible with 40ml, 50ml, 80ml, and 100ml cups and cones
Operation: Rotary 12-station system with mechanical drive and pneumatic controls
Filling System: Pneumatically timed filling for consistent volume
Cup & Lid Handling: Automated cup regulation, lid placement, ejection, and discharge using vacuum and pneumatic actuators
Control System: PLC-based with HMI for simple and reliable operation
Construction: Product contact parts made of SS 304 food-grade stainless steel; powder-coated finish for non-contact components
Power: 0.75 kW, 3 Phase, 440V AC; Control circuit 24V DC
Air Pressure Requirement: 6 kg/cm

Auxiliary Equipment Included:

Air Compressor 5 HP, 300-liter capacity
Air Dryer 20 CFM, 1 HP
These ensure a clean and dry air supply for reliable pneumatic function and extended machine life.
